19010-01570 BODY ASSY, INJECTI Denso Cross


Rating:
15
Buy BODY ASSY, INJECTI 19010-01570 genuine, new aftermarket engine parts with delivery

Information body assy, injecti Denso

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
Body assy, injecti

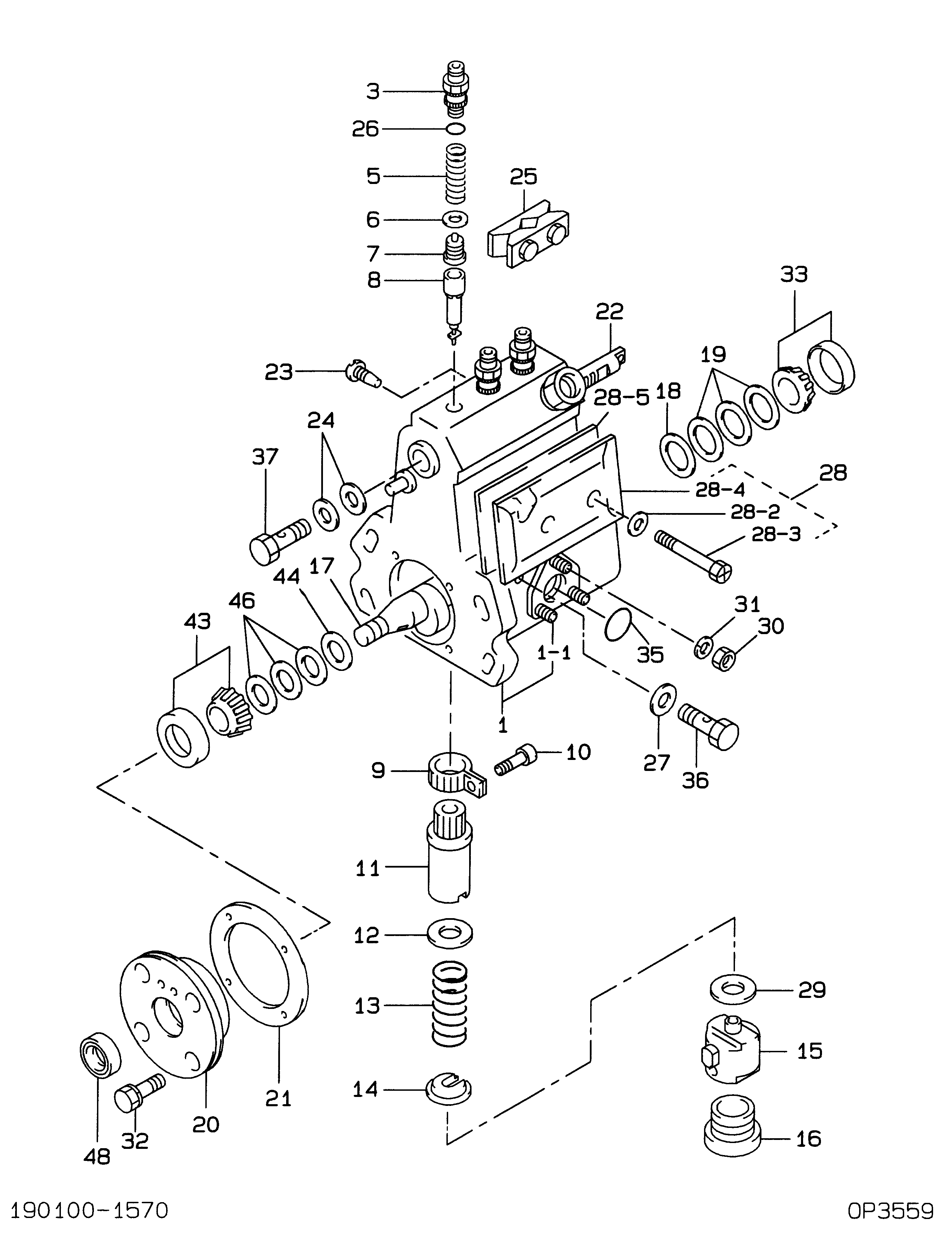

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19010-01570
BODY ASSY, INJECTI
A3
001
[01]
HOUSING KIT, INJEC
001-001
[03]
BOLT, STUD
M6,L26
003
[03]
HOLDER SUB-ASSY, D
005
[03]
SPRING, DELIVERY V
006
[03]
GASKET, DELIVERY V
FOR D13
007
[03]
VALVE SUB-ASSY, IN
008
[03]
ELEMENT SUB-ASSY,
MK:3240
009
[03]
PINION, PLUNGER CO
010
[03]
SCREW, PLUNGER CON
011
[03]
SLEEVE, PLUNGER CO
012
[03]
SEAT, SPRING, UPR
013
[03]
SPRING, PUMP PLUNG
014
[03]
SEAT, SPRING, LWR
015
[03]
TAPPET SUB-ASSY,IN
016
[03]
PLUG, INJECTION PU
017
[01]
CAMSHAFT, INJECTIO
018
[01]
RING, CAMSHAFT ADJ
019
[3C]
PLATE, CAMSHAFT SH
T0.1
019
[3C]
PLATE, CAMSHAFT SH
T0.12
019
[3C]
PLATE, CAMSHAFT SH
T0.14
019
[3C]
PLATE, CAMSHAFT SH
T0.16
019
[3C]
PLATE, CAMSHAFT SH
T0.18
019
[3C]
PLATE, CAMSHAFT SH
T0.5
019
[3C]
PLATE, CAMSHAFT SH
T0.3
019
[3C]
PLATE, CAMSHAFT SH
T1.0
019
[3C]
PLATE, CAMSHAFT SH
T1.5
019
[3C]
PLATE, CAMSHAFT SH
T2.0
019
[3C]
PLATE, CAMSHAFT SH
T0.03
020
[01]
COVER, BEARING
021
[01]
GASKET, BEARING CO
022
[01]
RACK, CONTROL
023
[01]
SCREW, RACK GUIDE
024
[02]
WASHER, FUEL PIPE
T1.2
025
[01]
PLATE SET, VALVE H
026
[03]
O-RING
ID17.0
027
[01]
WASHER, INJECTION
T1,D13.9
028
[01]
COVER SUB-ASSY, IN
028-002
[02]
PACKING, AIR BLEED
028-003
[02]
SCREW
028-004
[01]
PROCESSING DRAWING
028-005
[01]
GASKET, INJECTION
029
[3C]
PLATE, TAPPET ADJU
T0.6
029
[3C]
PLATE, TAPPET ADJU
T0.7
029
[3C]
PLATE, TAPPET ADJU
T0.8
029
[3C]
PLATE, TAPPET ADJU
T0.9
029
[3C]
PLATE, TAPPET ADJU
T1.0
029
[3C]
PLATE, TAPPET ADJU
T1.1
029
[3C]
PLATE, TAPPET ADJU
T1.2
029
[3C]
PLATE, TAPPET ADJU
T1.3
029
[3C]
PLATE, TAPPET ADJU
T1.4
029
[3C]
PLATE, TAPPET ADJU
T0.1
029
[3C]
PLATE, TAPPET ADJU
T0.2
029
[3C]
PLATE, TAPPET ADJU
T0.3
029
[3C]
PLATE, TAPPET ADJU
T0.4
029
[3C]
PLATE, TAPPET ADJU
T0.5
029
[3C]
PLATE, TAPPET ADJU
T0.15
029
[3C]
PLATE, TAPPET ADJU
T0.13
030
[03]
NUT, HEXAGON
M6,L5
031
[03]
WASHER, SPRING
T1.5
032
[04]
BOLT, W/WASHER
M6,L20
033
[01]
BEARING, ROLLER
035
[01]
O-RING
ID32.0
036
[01]
PLUG, SCREW
037
[01]
SCREW, HOLLOW
M14,L26
043
[01]
BEARING, ROLLER
044
[01]
RING, CAMSHAFT ADJ
046
[3C]
PLATE, CAMSHAFT SH
T0.1
046
[3C]
PLATE, CAMSHAFT SH
T0.16
046
[3C]
PLATE, CAMSHAFT SH
T0.3
046
[3C]
PLATE, CAMSHAFT SH
T0.5
046
[3C]
PLATE, CAMSHAFT SH
T1.0
046
[3C]
PLATE, CAMSHAFT SH
T1.5
046
[3C]
PLATE, CAMSHAFT SH
T0.12
046
[3C]
PLATE, CAMSHAFT SH
T0.14
046
[3C]
PLATE, CAMSHAFT SH
T0.18
046
[3C]
PLATE, CAMSHAFT SH
T0.03
048
[01]
SEAL, OIL

Include in ##:

09300-05530 as BODY ASSY, INJECTI
19010-01570 BODY ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19010-01570

BODY ASSY, INJECTI




Information:


Do not operate or work on this product unless you have read and understood the instruction and warnings in the relevant Operation and Maintenance Manuals and relevant service literature. Failure to follow the instructions or heed the warnings could result in injury or death. Proper care is your responsibility.
The following changes are now available for the products within the listed serial numbers.New injector coolant tank assembly is now available for the machines listed above. The new coolant tank assembly provides better reliability against coolant leakage.Required Parts
Table 1
Required Parts
Item Qty New Part Number Part Name Former Part Number(1)
1 1 573-8722 Coolant Tank As 469-9108
2 1 586-9617 Bracket As 491-3429
3 1 570-0813 Hose 474-9783
(1) The former part number listed is for reference only and may differ.Refer to "Replacement Procedure" for the procedure to install a new coolant tank assembly (1).Replacement Procedure
Illustration 1 g06464028
(A) Hood
Illustration 2 g06464029
(B) Tank assembly
Remove hood (A) to gain access to tank assembly (B).
Illustration 3 g06464030
(B) Tank assembly
(C) Hose
(D) Clamp
Disconnect hose (C) from tank assembly (B) by removing clamp (D).
Illustration 4 g06464533
(E) Special connector
(F) Hose assembly
(H) Clips
Illustration 5 g06464539
(G) Bolts
Disconnect special connector (E). Remove tank assembly with hose assembly (F) by removing bolts (G). Remove clips (H) and special connector (E) from hose assembly (F).
Illustration 6 g06464548
(K) Bracket
(L) Bolts
Remove bracket (K) by removing bolts (L).
Illustration 7 g06464563
(1) 573-8722 Coolant Tank As
(3) 570-0813 Hose
(E) Special connector
(H) Clips
Illustration 8 g06464617
(D1) 27 degrees
(D2) 15 mm (0.6 inch)
(D3) 10 mm (0.4 inch)
Sub-assemble new tank assembly (1), hose (3), and special connector (E) with clips (H).Note: Align hose (3) and special connector (E) at the correct angle. Refer to Illustration 7 and 8 for proper alignment.
Illustration 9 g06464631
(2) 586-9617 Bracket As
(L) Bolts
Install new bracket assembly (2) with bolts (L). Torque bolts (L) to 12 3 N m (106.2 26.6 lb in)
