19010-00490 BODY ASSY, INJECTI Denso Cross


Rating:
18
Buy BODY ASSY, INJECTI 19010-00490 genuine, new aftermarket engine parts with delivery

Information body assy, injecti Denso

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
1904400460
Body assy, injecti
1904400460

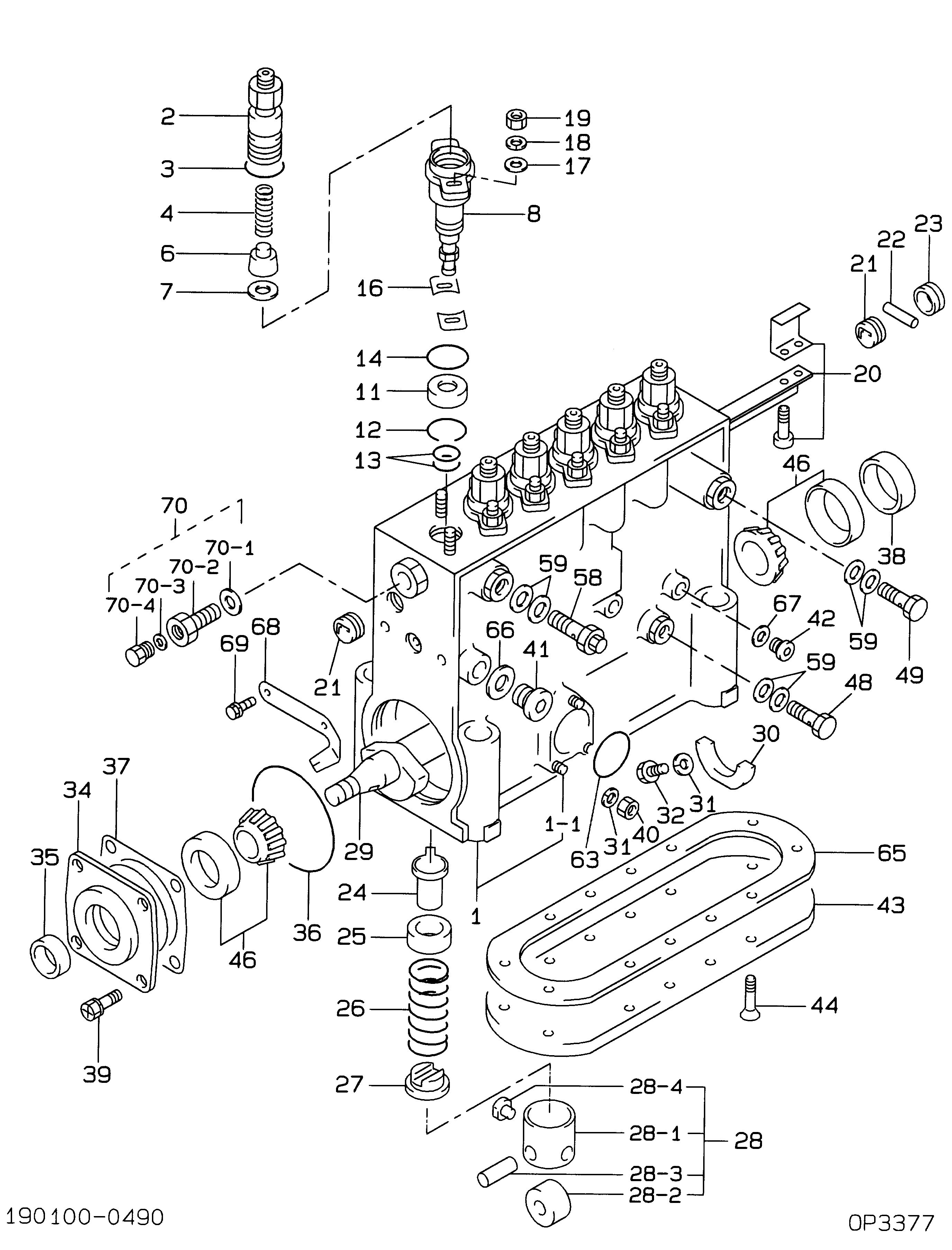

Scheme #.#:

BODY ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
19010-00490
BODY ASSY, INJECTI
NE:REINFORCED
001
[01]
09011-04410
HOUSING SUB-ASSY,
001-001
[03]
94904-30010
BOLT, STUD
M6,L26
002
[06]
09013-00300
HOLDER SUB-ASSY, D
003
[06]
09013-90050
O-RING
ID19.8
004
[06]
09013-61040
SPRING, DELIVERY V
006
[06]
09014-02200
VALVE SUB-ASSY, IN
007
[06]
09013-70120
GASKET, DELIVERY V
008
[06]
09015-05590
ELEMENT SUB-ASSY,
011
[06]
09043-60280
COVER, ELEMENT
012
[06]
94907-20780
RING, SNAP
ID18.2
013
[12]
09013-90170
O-RING
ID15
014
[06]
09013-90221
O-RING
ID28.8
016
[C]
09043-80080
SHIM, ELEMENT HOLD
T1.4
016
[C]
09043-80090
SHIM, ELEMENT HOLD
T1.45
016
[C]
09043-80100
SHIM, ELEMENT HOLD
T1.5
016
[C]
09043-80110
SHIM, ELEMENT HOLD
T1.55
016
[C]
09043-80120
SHIM, ELEMENT HOLD
T1.6
016
[C]
09043-80710
SHIM, ELEMENT HOLD
T0.7
016
[C]
09043-80720
SHIM, ELEMENT HOLD
T0.75
016
[C]
09043-80730
SHIM, ELEMENT HOLD
T0.8
016
[C]
09043-80740
SHIM, ELEMENT HOLD
T0.85
016
[C]
09043-80750
SHIM, ELEMENT HOLD
T0.9
016
[C]
09043-80760
SHIM, ELEMENT HOLD
T0.95
016
[C]
09043-80770
SHIM, ELEMENT HOLD
T1.0
016
[C]
09043-80780
SHIM, ELEMENT HOLD
T1.05
016
[C]
09043-80790
SHIM, ELEMENT HOLD
T1.1
016
[C]
09043-80800
SHIM, ELEMENT HOLD
T1.15
016
[C]
09043-80810
SHIM, ELEMENT HOLD
T1.2
016
[C]
09043-80820
SHIM, ELEMENT HOLD
T1.25
016
[C]
09043-80830
SHIM, ELEMENT HOLD
T1.3
016
[C]
09043-80840
SHIM, ELEMENT HOLD
T1.35
017
[12]
94901-17040
WASHER, STEEL PLAT
T2.6
018
[12]
90258-10001
WASHER, SPRING
M10
019
[12]
90160-10081
NUT, HEXAGON
M10,L8
020
[01]
09021-00541
RACK ASSY, CONTROL
021
[02]
09011-40060
BUSHING, CONTROL R
022
[01]
94908-20290
PIN, STRAIGHT
023
[01]
09036-70010
BUSHING, CONTROL R
024
[06]
09016-00130
SLEEVE SUB-ASSY, C
025
[06]
09016-30060
SEAT, SPRING, UPR
026
[06]
09016-40260
SPRING, PUMP PLUNG
027
[06]
09016-50220
SEAT, SPRING, LWR
028
[06]
09017-00300
TAPPET SUB-ASSY,IN
028-001
[06]
09017-10310
TAPPET, INJECTION
028-002
[06]
09018-10210
ROLLER, INJECTION
028-003
[06]
09017-60080
PIN, INJECTION PUM
028-004
[06]
09017-50050
SLIDER
029
[01]
09019-11280
CAMSHAFT, INJECTIO
030
[01]
09036-10190
BEARING, CENTER
031
[05]
90258-06001
WASHER, SPRING
T1.5
032
[02]
94900-66510
SCREW
M6,L18
034
[01]
09020-10680
COVER, BEARING
035
[01]
94915-02291
SEAL, OIL
036
[01]
09013-90110
O-RING
ID58
037
[3C]
09020-80220
PLATE, SHIM
T0.03
037
[3C]
09020-80230
PLATE, SHIM
T0.05
037
[3C]
09020-80240
PLATE, SHIM
T0.07
037
[3C]
09020-80250
PLATE, SHIM
T0.1
037
[3C]
09020-80260
PLATE, SHIM
T0.2
037
[3C]
09020-80270
PLATE, SHIM
T0.3
037
[3C]
09020-80280
PLATE, SHIM
T0.5
038
[01]
09043-30030
RETAINER, BEARING
039
[04]
91518-08201
BOLT, W/WASHER
M8,L20
040
[03]
90160-06051
NUT, HEXAGON
M6,L5
041
[01]
09031-70070
PLUG, SCREW
042
[06]
09031-70060
PLUG, SCREW
043
[01]
09027-10380
PLATE, INJECTION P
044
[12]
90045-06121
SCREW, SLOTTED POL
M6,L12
046
[02]
94910-10180
BEARING, ROLLER
OD55ID30
048
[01]
94918-00310
SCREW, HOLLOW
M14,L26
049
[01]
09024-50390
SCREW, HOLLOW
M14,L26
058
[01]
09031-00210
VALVE ASSY, OVERFL
2.6K
059
[06]
09022-20070
WASHER, FUEL PIPE
T1.2
063
[01]
94914-00380
O-RING
ID32.0
065
[01]
09027-20260
GASKET, INJECTION
066
[01]
94901-80710
WASHER, COPPER PLA
T2
067
[06]
94901-81500
WASHER, COPPER PLA
T1
068
[01]
09011-80360
NEEDLE, TIMING
069
[02]
94904-71790
BOLT, W/WASHER
M6,L14
070
[01]
09024-00010
BLEEDER SUB-ASSY,
070-001
[01]
09024-10010
WASHER, AIR BLEEDE
T1.6
070-002
[01]
09024-20010
NIPPLE, AIR BLEEDE
070-003
[01]
09024-30030
PACKING, AIR BLEED
070-004
[01]
09024-40010
SCREW, AIR BLEEDER

Include in ##:

19010-00490 as BODY ASSY, INJECTI
19100-09930 PUMP ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
19010-00490

BODY ASSY, INJECTI
