Buy BODY ASSY, INJECTI 09010-09900 genuine, new aftermarket engine parts with delivery

Information body assy, injecti Denso

KIT List:

Part name

Kit1

Kit2

Body assy, injecti

1904400360

Body assy, injecti

1904400360

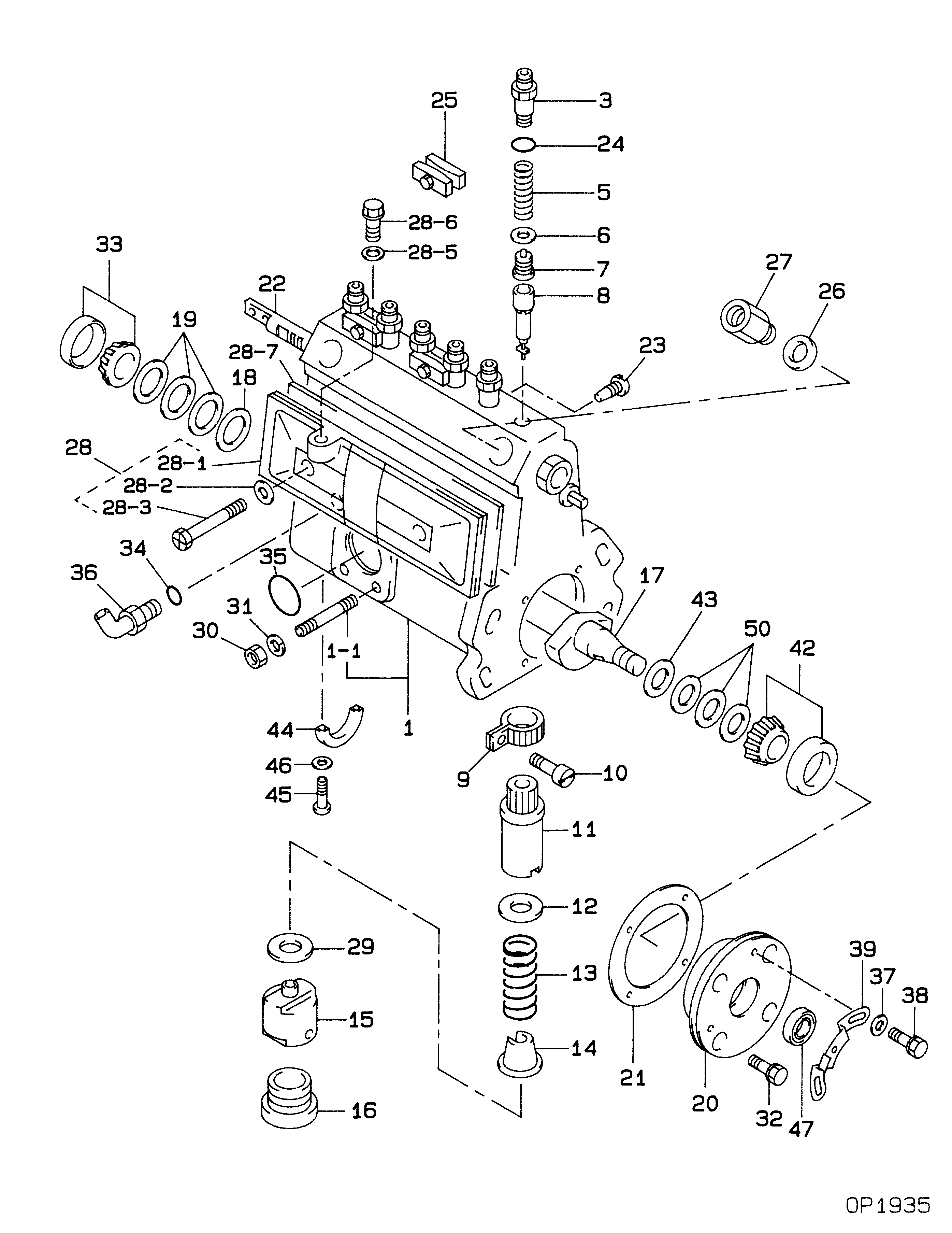

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

09010-09900

BODY ASSY, INJECTI

001

[01]

19011-04280

HOUSING KIT, INJEC

001-001

[03]

94904-30010

BOLT, STUD

M6,L26

003

[06]

09013-00410

HOLDER SUB-ASSY, D

005

[06]

09013-60930

SPRING, DELIVERY V

006

[06]

09013-70100

GASKET, DELIVERY V

ID9.6D13

007

[06]

09014-01890

VALVE SUB-ASSY, IN

MK:J

008

[06]

09015-05070

ELEMENT SUB-ASSY,

009

[06]

09015-60010

PINION, PLUNGER CO

010

[06]

09015-70010

SCREW, PLUNGER CON

011

[06]

09016-10500

SLEEVE, PLUNGER CO

012

[06]

09016-30120

SEAT, SPRING, UPR

-9301

012

[06]

09016-30191

SEAT, SPRING, UPR

9301-

013

[06]

09016-40090

SPRING, PUMP PLUNG

014

[06]

09016-50160

SEAT, SPRING, LWR

015

[06]

09017-00070

TAPPET SUB-ASSY,IN

016

[06]

09018-90090

PLUG, INJECTION PU

017

[01]

09019-11220

CAMSHAFT, INJECTIO

018

[01]

09019-30020

RING, CAMSHAFT ADJ

019

[3C]

09019-40010

PLATE, CAMSHAFT SH

T0.1

019

[3C]

09019-40020

PLATE, CAMSHAFT SH

T0.12

019

[3C]

09019-40030

PLATE, CAMSHAFT SH

T0.14

019

[3C]

09019-40040

PLATE, CAMSHAFT SH

T0.16

019

[3C]

09019-40050

PLATE, CAMSHAFT SH

T0.18

019

[3C]

09019-40060

PLATE, CAMSHAFT SH

T0.5

019

[3C]

09019-40110

PLATE, CAMSHAFT SH

T0.3

019

[3C]

09019-40140

PLATE, CAMSHAFT SH

T1.0

019

[3C]

09019-40150

PLATE, CAMSHAFT SH

T1.5

019

[3C]

09019-40290

PLATE, CAMSHAFT SH

T2.0

019

[3C]

09019-40400

PLATE, CAMSHAFT SH

T0.03

020

[01]

09020-10690

COVER, BEARING

-9605

020

[01]

09020-10810

COVER, BEARING

9605-

021

[01]

09020-60020

GASKET, BEARING CO

-9306

021

[01]

09020-60150

GASKET, BEARING CO

ROUND TYPE 9306-

022

[01]

09021-20180

RACK, CONTROL

023

[01]

09021-50060

SCREW, RACK GUIDE

024

[06]

94914-02570

O-RING

ID17

025

[03]

09023-00050

PLATE SET, VALVE H

026

[01]

94901-80550

WASHER, COPPER PLA

T2,FOR M14

027

[01]

09031-00160

VALVE ASSY, OVERFL

1.5K

028

[01]

09027-01130

COVER SUB-ASSY, IN

028-001

[01]

09027-10360

PLATE, INJECTION P

028-002

[02]

09024-30030

PACKING, AIR BLEED

ID6.7

028-003

[02]

09027-60030

SCREW

M6,L54

028-005

[01]

09024-10010

WASHER, AIR BLEEDE

T1.6ID12

028-006

[01]

09116-70031

PLUG, SCREW

028-007

[01]

09027-20220

GASKET, INJECTION

029

[6C]

09031-10010

PLATE, TAPPET ADJU

T0.6

029

[6C]

09031-10020

PLATE, TAPPET ADJU

T0.7

029

[6C]

09031-10030

PLATE, TAPPET ADJU

T0.8

029

[6C]

09031-10040

PLATE, TAPPET ADJU

T0.9

029

[6C]

09031-10050

PLATE, TAPPET ADJU

T1.0

029

[6C]

09031-10060

PLATE, TAPPET ADJU

T1.1

029

[6C]

09031-10070

PLATE, TAPPET ADJU

T1.2

029

[6C]

09031-10080

PLATE, TAPPET ADJU

T1.3

029

[6C]

09031-10090

PLATE, TAPPET ADJU

T1.4

029

[6C]

09031-10100

PLATE, TAPPET ADJU

T0.1

029

[6C]

09031-10110

PLATE, TAPPET ADJU

T0.2

029

[6C]

09031-10120

PLATE, TAPPET ADJU

T0.3

029

[6C]

09031-10130

PLATE, TAPPET ADJU

T0.4

029

[6C]

09031-10140

PLATE, TAPPET ADJU

T0.5

029

[6C]

09031-10150

PLATE, TAPPET ADJU

T0.15

029

[6C]

09031-10290

PLATE, TAPPET ADJU

T0.13

030

[03]

90160-06051

NUT, HEXAGON

M6,L5

031

[03]

90258-06001

WASHER, SPRING

T1.5

032

[04]

94904-74750

BOLT, W/WASHER

M6,L14

033

[01]

94910-10120

BEARING, ROLLER

034

[01]

94914-03420

O-RING

ID7.7

035

[01]

94914-00380

O-RING

ID32.0

036

[01]

09007-30030

NIPPLE, ELBOW

037

[02]

90200-05001

WASHER, PLATE

T0.8

038

[02]

91418-05081

BOLT, W/WASHER

M5,L8

039

[01]

09010-80060

NEEDLE SUB-ASSY, T

042

[01]

94910-10071

BEARING, ROLLER

043

[01]

09019-30050

RING, CAMSHAFT ADJ

044

[01]

09036-10150

BEARING, CENTER

045

[01]

94900-66550

SCREW

M5,L30

046

[02]

94901-81030

WASHER, COPPER PLA

047

[01]

94915-01620

SEAL, OIL

050

[3C]

09019-40070

PLATE, CAMSHAFT SH

T0.1

050

[3C]

09019-40080

PLATE, CAMSHAFT SH

T0.16

050

[3C]

09019-40090

PLATE, CAMSHAFT SH

T0.3

050

[3C]

09019-40100

PLATE, CAMSHAFT SH

T0.5

050

[3C]

09019-40160

PLATE, CAMSHAFT SH

T1.0

050

[3C]

09019-40170

PLATE, CAMSHAFT SH

T1.5

050

[3C]

09019-40340

PLATE, CAMSHAFT SH

T0.12

050

[3C]

09019-40350

PLATE, CAMSHAFT SH

T0.14

050

[3C]

09019-40360

PLATE, CAMSHAFT SH

T0.18

050

[3C]

09019-40410

PLATE, CAMSHAFT SH

T0.03

Include in ##:

09010-09900 as BODY ASSY, INJECTI

19100-09650 PUMP ASSY, INJECTI

Cross reference number

Part num

Firm num

Firm

Name

09010-09900

BODY ASSY, INJECTI
