09010-07700 BODY ASSY, INJECTI Denso Cross


Rating:
49
Buy BODY ASSY, INJECTI 09010-07700 genuine, new aftermarket engine parts with delivery

Information body assy, injecti Denso

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
Body assy, injecti
Body assy, injecti

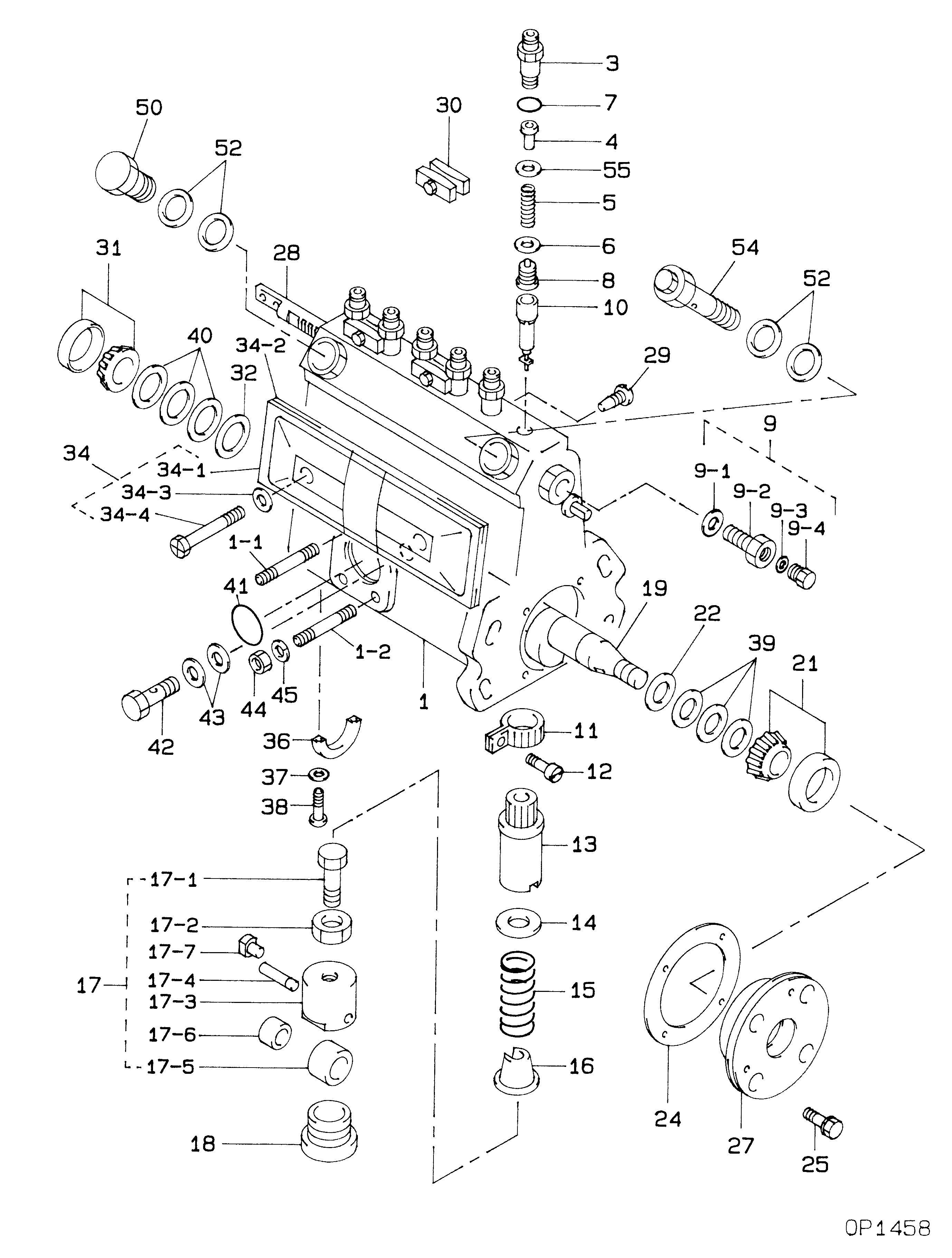

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09010-07700
BODY ASSY, INJECTI
A6:COLD SPEC
001
[01]
HOUSING KIT, INJEC
001-001
[01]
BOLT, STUD
M6,L26
001-002
[02]
BOLT, STUD
M6,L28
003
[06]
HOLDER, DELIVERY V
004
[06]
STOPPER, DELIVERY
005
[06]
SPRING, DELIVERY V
006
[06]
GASKET, DELIVERY V
007
[06]
O-RING
008
[06]
VALVE SUB-ASSY, IN
MK:1250
009
[01]
BLEEDER SUB-ASSY,
009-001
[01]
WASHER, AIR BLEEDE
T1.6
009-002
[01]
NIPPLE, AIR BLEEDE
009-003
[01]
WASHER, DRAIN SCRE
009-004
[01]
SCREW, AIR BLEEDER
010
[06]
ELEMENT SUB-ASSY,
MK:2850
011
[06]
PINION, PLUNGER CO
012
[06]
SCREW, PLUNGER CON
013
[06]
SLEEVE, PLUNGER CO
014
[06]
SEAT, SPRING, UPR
-9301
014
[06]
SEAT, SPRING, UPR
9301-
015
[06]
SPRING, PUMP PLUNG
016
[06]
SEAT, SPRING, LWR
017
[06]
TAPPET SUB-ASSY,IN
017-001
[06]
BOLT, INJECTION PU
017-002
[06]
NUT, INJECTION PUM
017-003
[06]
BODY, INJECTION PU
-9303
017-003
[06]
TAPPET, INJECTION
9303-
017-004
[06]
PIN, INJECTION PUM
017-005
[06]
ROLLER, INJECTION
017-006
[06]
BUSHING, INJECTION
017-007
[06]
SLIDER
9303-
018
[06]
PLUG, INJECTION PU
019
[01]
CAMSHAFT, INJECTIO
021
[01]
BEARING, ROLLER
022
[01]
RING, CAMSHAFT ADJ
024
[01]
GASKET, BEARING CO
-9304
024
[01]
GASKET, BEARING CO
9305-
025
[04]
BOLT, W/WASHER
M6,L20
027
[01]
COVER, BEARING
028
[01]
RACK, CONTROL
029
[01]
SCREW, RACK GUIDE
-9308
029
[01]
SCREW, RACK GUIDE
9308-
030
[03]
PLATE SET, VALVE H
031
[01]
BEARING, ROLLER
032
[01]
RING, CAMSHAFT ADJ
034
[01]
COVER SUB-ASSY, IN
COLD SPEC.
034-001
[01]
PROCESSING DRAWING
034-002
[01]
GASKET, INJECTION
COLD SPEC.
034-003
[02]
WASHER
T1
034-004
[02]
SCREW
036
[01]
BEARING, CENTER
037
[02]
WASHER, COPPER PLA
T1
038
[02]
SCREW, CROSSRECESS
M5,L35 -9111
038
[02]
SCREW
9111-
039
[3C]
PLATE, CAMSHAFT SH
T0.1
039
[3C]
PLATE, CAMSHAFT SH
T0.16
039
[3C]
PLATE, CAMSHAFT SH
T0.3
039
[3C]
PLATE, CAMSHAFT SH
T0.5
039
[3C]
PLATE, CAMSHAFT SH
T1.0
039
[3C]
PLATE, CAMSHAFT SH
T1.5
039
[3C]
PLATE, CAMSHAFT SH
T0.03 9308-
040
[3C]
PLATE, CAMSHAFT SH
T0.1
040
[3C]
PLATE, CAMSHAFT SH
T0.12
040
[3C]
PLATE, CAMSHAFT SH
T0.14
040
[3C]
PLATE, CAMSHAFT SH
T0.16
040
[3C]
PLATE, CAMSHAFT SH
T0.18
040
[3C]
PLATE, CAMSHAFT SH
T0.5
040
[3C]
PLATE, CAMSHAFT SH
T0.3
040
[3C]
PLATE, CAMSHAFT SH
T1.0
040
[3C]
PLATE, CAMSHAFT SH
T1.5
040
[3C]
PLATE, CAMSHAFT SH
T2.0
040
[3C]
PLATE, CAMSHAFT SH
T0.03 9308-
041
[01]
O-RING
042
[01]
SCREW, HOLLOW
043
[02]
WASHER, INJECTION
044
[03]
NUT, HEXAGON
M6
045
[03]
WASHER, SPRING
FOR M6
050
[01]
SCREW, HOLLOW
052
[04]
WASHER, COPPER PLA
T2
054
[01]
VALVE ASSY, OVERFL
2.4-2.8K
055
[C]
WASHER, PLATE
T0.1
055
[C]
WASHER, PLATE
T0.2
055
[C]
WASHER, PLATE, SK
T0.15

Include in ##:

09010-07700 as BODY ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09010-07700

BODY ASSY, INJECTI




Information:

START BY:a. remove fuel injection pump housing and governorb. remove fuel transfer pumpc. remove tachometer drive If it is desired to only remove the governor so the fuel injection pump housing can be disassembled, do only Steps 1, 2, 3, 16, 22, 25, 26, 27, 28, 32, 34 and 37. 1. Put the fuel injection pump housing and governor in position on tool (A).2. Remove the bolts, fuel ratio control (1) and shutoff solenoid (2) from rear governor housing (3).3. Remove the bolts, rear governor housing (3) and the gasket from the front governor housing. 4. Remove governor spring (4), the two wave washers, one flat washer and the seat from the guide in the rear governor housing. 5. Remove bolt (5) that holds lever assembly (6) to the shaft assembly. There is a key in the (slot) groove of the shaft assembly that must be removed before the shaft assembly is removed from the rear governor housing.6. Remove shaft assembly (7), lever (6) and lever (8) from the rear governor housing. Put an alignment mark on lever (9) for correct assembly purposes.7. Remove bolt (10), lever assembly (9) and spring (11) from shaft assembly (7). 8. Remove plug (12) and lip-type seal (13) from the housing. Spacers (14) and (16) are different sizes. Make sure they are assembled in the correct position.9. Use needle nose pliers, and remove the shaft. Remove spacer (14), lever (15) and spacer (16) from the governor housing. 10. Remove two setscrews and locknuts (17) if necessary. 11. Release spring (18) from the notch in the housing. Remove snap ring (19), and remove shaft (20) from the housing. Remove lever (21) and spring (18). 12. Remove lip-type seal (22) from the housing. 13. If necessary, remove the screws, cover (23) and the gasket from the governor housing. 14. Remove high idle cover (24) and three O-ring seals (25). 15. Remove lip-type seal (26), dashpot valve (27), fitting (25), insulator and high idle adjustment (28) from the rear housing. 16. Remove two bolts (29), housing (30) and the gasket from the fuel pump housing. 17. Remove bolts (31), and remove torque control group (32) from the block.
Depending on the different engine applications, torque control groups will vary. Inspect all parts for wear and damage, and make a note of the correct sequence of the parts for assembly purposes.
For additional information, see Specifications For 3406B Diesel Truck Engines. 18. Remove the bolts and block (33) for the full load stop from the housing. 19. Remove the bolt that holds collar (35) to bolt (36).20. Remove collar (35) and spring (34) from bolt (36). Remove bolt (36) from the block.21. If necessary, remove the stop screw and the power setting screw from collar (35). It may be necessary to turn the piston to remove the servo from the rack.22. Remove the three bolts and governor servo (37) from the fuel injection pump housing. 23. Remove lockring (43), seat (42), spring (41) and sleeve (40) from valve
