09010-06830 BODY ASSY, INJECTI Denso Cross Denso

Buy now

Add to cart Go to cart

Rating:

Buy BODY ASSY, INJECTI 09010-06830 genuine, new aftermarket engine parts with delivery

Information body assy, injecti Denso

KIT List:

Part name

Kit1

Kit2

Body assy, injecti

Body assy, injecti

Body assy, injecti

Body assy, injecti

Body assy, injecti

Body assy, injecti

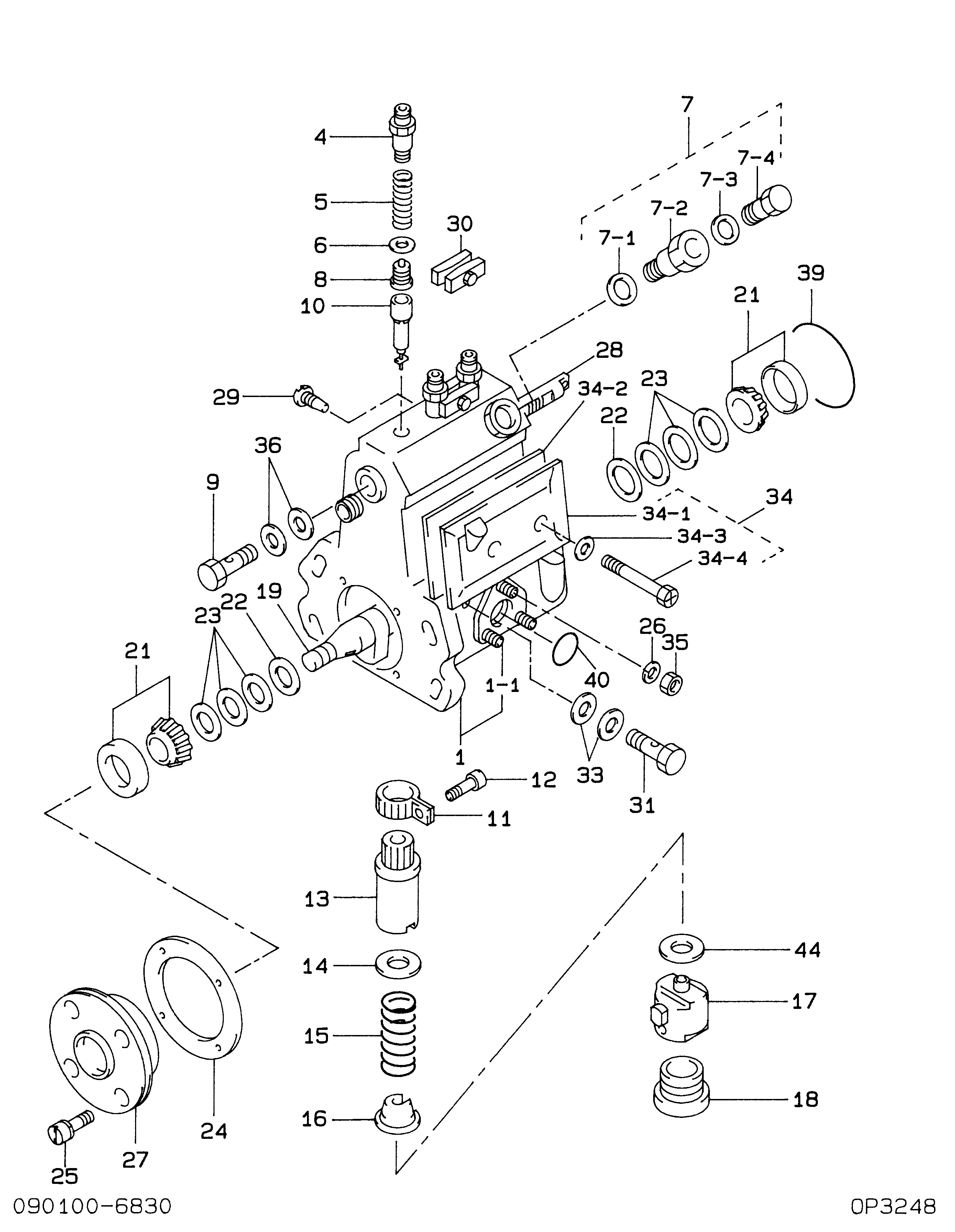

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

09010-06830

BODY ASSY, INJECTI

001

[01]

19011-02031

HOUSING KIT, INJEC

001-001

[01]

94904-30010

BOLT, STUD

M6,L26

004

[03]

09013-10540

HOLDER, DELIVERY V

005

[03]

09013-60040

SPRING, DELIVERY V

006

[03]

09013-70010

GASKET, DELIVERY V

007

[01]

09024-00010

BLEEDER SUB-ASSY,

007-001

[01]

09024-10010

WASHER, AIR BLEEDE

007-002

[01]

09024-20010

NIPPLE, AIR BLEEDE

007-003

[01]

09024-30030

PACKING, AIR BLEED

007-004

[01]

09024-40010

SCREW, AIR BLEEDER

008

[03]

09014-00010

VALVE SUB-ASSY, IN

MK:50S5

009

[01]

94918-00310

SCREW, HOLLOW

010

[03]

09015-00050

ELEMENT SUB-ASSY,

MK:185-6

011

[03]

09015-60010

PINION, PLUNGER CO

012

[03]

09015-70010

SCREW, PLUNGER CON

013

[03]

09016-10160

SLEEVE, PLUNGER CO

-9302

013

[03]

09016-10330

SLEEVE, PLUNGER CO

9302-

014

[03]

09016-30010

SEAT, SPRING, UPR

-9301

014

[03]

09016-30191

SEAT, SPRING, UPR

9301-

015

[03]

09016-40090

SPRING, PUMP PLUNG

016

[03]

09016-50160

SEAT, SPRING, LWR

017

[03]

09017-00070

TAPPET SUB-ASSY,IN

018

[03]

09018-90090

PLUG, INJECTION PU

019

[01]

09019-10201

CAMSHAFT, INJECTIO

021

[02]

94910-10120

BEARING, ROLLER

022

[02]

09019-30020

RING, CAMSHAFT ADJ

023

[C]

09019-40010

PLATE, CAMSHAFT SH

T0.1

023

[C]

09019-40020

PLATE, CAMSHAFT SH

T0.12

023

[C]

09019-40030

PLATE, CAMSHAFT SH

T0.14

023

[C]

09019-40040

PLATE, CAMSHAFT SH

T0.16

023

[C]

09019-40050

PLATE, CAMSHAFT SH

T0.18

023

[C]

09019-40060

PLATE, CAMSHAFT SH

T0.5

023

[C]

09019-40290

PLATE, CAMSHAFT SH

T2.0

023

[C]

09019-40150

PLATE, CAMSHAFT SH

T1.5

023

[C]

09019-40140

PLATE, CAMSHAFT SH

T1.0

023

[C]

09019-40110

PLATE, CAMSHAFT SH

T0.3

024

[01]

09020-60010

GASKET, BEARING CO

-9304

024

[01]

09020-60160

GASKET, BEARING CO

9305-

025

[04]

94904-71360

BOLT, W/WASHER

M6,L14

026

[03]

90258-06001

WASHER, SPRING

T1.5

027

[01]

09020-10300

COVER, BEARING

028

[01]

09021-20050

RACK, CONTROL

029

[01]

09021-50060

SCREW, RACK GUIDE

030

[02]

09023-00031

PLATE SET, VALVE H

031

[01]

94918-00690

SCREW, HOLLOW

M10

033

[02]

09025-10010

WASHER, INJECTION

T1,D13.9

034

[01]

09027-01140

COVER SUB-ASSY, IN

-9511

034

[01]

09027-01150

COVER SUB-ASSY, IN

9512-

034-001

[01]

09027-50133

PROCESSING DRAWING

034-002

[01]

09027-20200

GASKET, INJECTION

034-003

[02]

09024-30030

PACKING, AIR BLEED

034-004

[02]

09027-60030

SCREW

035

[03]

90160-06051

NUT, HEXAGON

M6,L5

036

[02]

09022-20070

WASHER, FUEL PIPE

T1.2

039

[01]

94914-00060

O-RING

ID45.5

040

[01]

94914-00380

O-RING

ID32.0

044

[C]

09031-10010

PLATE, TAPPET ADJU

T0.6

044

[C]

09031-10020

PLATE, TAPPET ADJU

T0.7

044

[C]

09031-10030

PLATE, TAPPET ADJU

T0.8

044

[C]

09031-10040

PLATE, TAPPET ADJU

T0.9

044

[C]

09031-10050

PLATE, TAPPET ADJU

T1.0

044

[C]

09031-10060

PLATE, TAPPET ADJU

T1.1

044

[C]

09031-10070

PLATE, TAPPET ADJU

T1.2

044

[C]

09031-10080

PLATE, TAPPET ADJU

T1.3

044

[C]

09031-10090

PLATE, TAPPET ADJU

T1.4

044

[C]

09031-10100

PLATE, TAPPET ADJU

T0.1

044

[C]

09031-10110

PLATE, TAPPET ADJU

T0.2

044

[C]

09031-10120

PLATE, TAPPET ADJU

T0.3

044

[C]

09031-10130

PLATE, TAPPET ADJU

T0.4

044

[C]

09031-10140

PLATE, TAPPET ADJU

T0.5

044

[C]

09031-10150

PLATE, TAPPET ADJU

T0.15

Include in ##:

09010-06830 as BODY ASSY, INJECTI

19100-01950 PUMP ASSY, INJECTI

Cross reference number

Part num

Firm num

Firm

Name

09010-06830

BODY ASSY, INJECTI

09010-06830 BODY ASSY, INJECTI Denso Cross
