09010-04450 BODY ASSY, INJECTI Denso Cross


Rating:
77
Buy BODY ASSY, INJECTI 09010-04450 genuine, new aftermarket engine parts with delivery

Information body assy, injecti Denso

KIT List:

Part name
Kit1
Kit2
Body assy, injecti
No Application
Body assy, injecti
No Application
Body assy, injecti
No Application

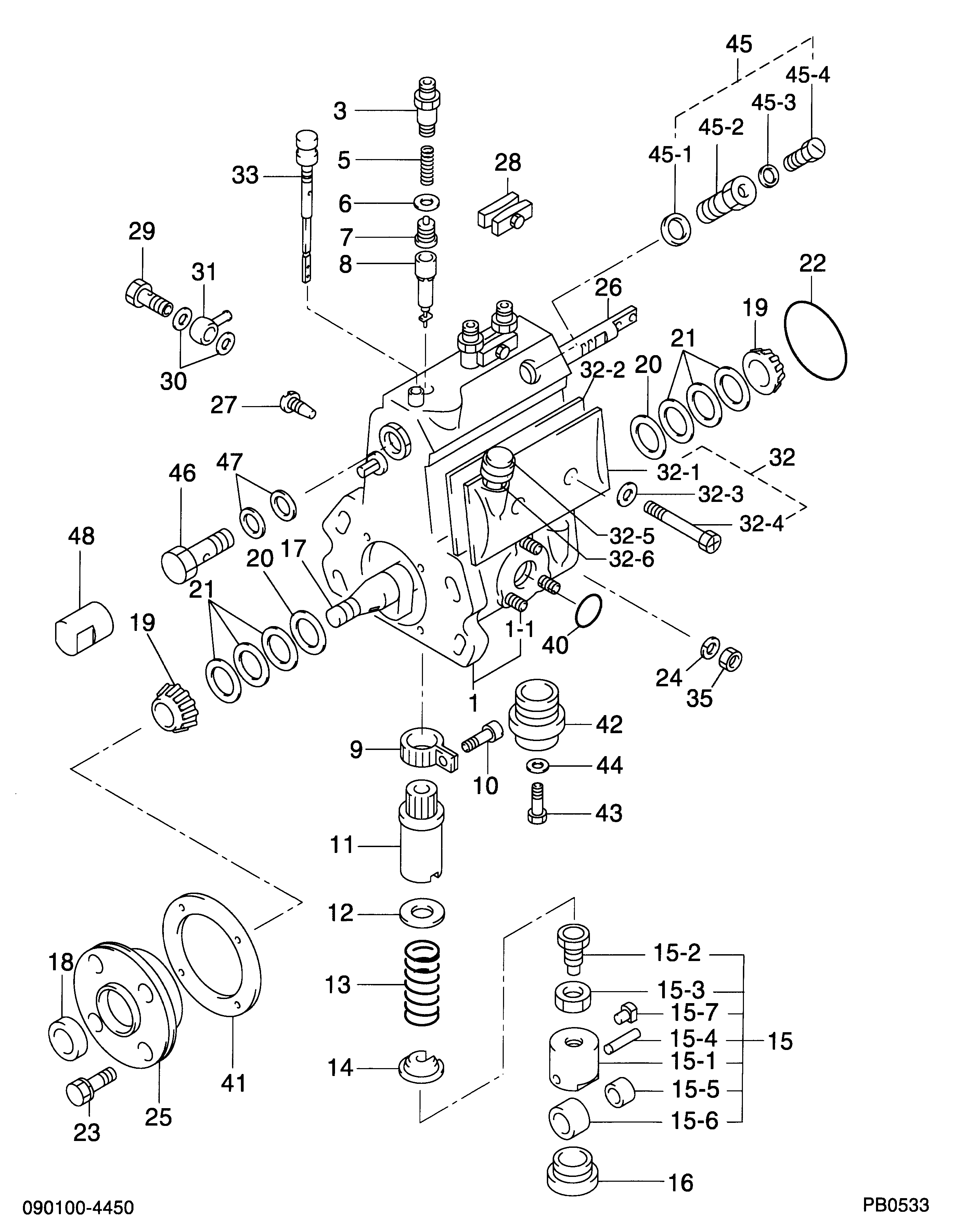

Scheme #.#:

BODY ASSY, INJECTI
№
Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09010-04450
BODY ASSY, INJECTI
A3
001
[01]
19011-02600
HOUSING KIT, INJEC
001-001
[01]
94904-30010
BOLT, STUD
003
[03]
09013-10020
HOLDER, DELIVERY V
005
[03]
09013-60070
SPRING, DELIVERY V
006
[03]
09013-70010
GASKET, DELIVERY V
D18,ID12
007
[03]
09014-00960
VALVE SUB-ASSY, IN
MK:0960
008
[03]
09015-00030
ELEMENT SUB-ASSY,
MK:1858
009
[03]
09015-60010
PINION, PLUNGER CO
010
[03]
09015-70010
SCREW, PLUNGER CON
011
[03]
09016-10160
SLEEVE, PLUNGER CO
-9301
011
[03]
09016-10330
SLEEVE, PLUNGER CO
9302-
012
[03]
09016-30191
SEAT, SPRING, UPR
013
[03]
09016-40010
SPRING, PUMP PLUNG
014
[03]
09016-50010
SEAT, SPRING, LWR
015
[03]
09017-00130
TAPPET SUB-ASSY,IN
015-001
[03]
09016-90130
BODY, INJECTION PU
015-002
[03]
09017-30010
BOLT, INJECTION PU
015-003
[03]
09017-40010
NUT, INJECTION PUM
015-004
[03]
09017-60010
PIN, INJECTION PUM
015-005
[03]
09017-80030
BUSHING, INJECTION
015-006
[03]
09018-10030
ROLLER, INJECTION
015-007
[03]
09017-50040
SLIDER
016
[01]
09018-90090
PLUG, INJECTION PU
M26,D30
017
[01]
09019-10751
CAMSHAFT, INJECTIO
018
[01]
94915-00930
SEAL, OIL
019
[02]
94910-10120
BEARING, ROLLER
020
[02]
09019-30020
RING, CAMSHAFT ADJ
021
[6C]
09019-40010
PLATE, CAMSHAFT SH
T0.1
021
[6C]
09019-40020
PLATE, CAMSHAFT SH
T0.12
021
[6C]
09019-40030
PLATE, CAMSHAFT SH
T0.14
021
[6C]
09019-40040
PLATE, CAMSHAFT SH
T0.16
021
[6C]
09019-40050
PLATE, CAMSHAFT SH
T0.18
021
[6C]
09019-40060
PLATE, CAMSHAFT SH
T0.5
021
[6C]
09019-40140
PLATE, CAMSHAFT SH
T1.0
021
[6C]
09019-40150
PLATE, CAMSHAFT SH
T1.5
022
[01]
94914-00060
O-RING
ID45.5
023
[04]
94904-71360
BOLT, W/WASHER
M6,L14
024
[03]
90258-06001
WASHER, SPRING
T1.5
025
[01]
09020-10240
COVER, BEARING
026
[01]
09021-20190
RACK, CONTROL
027
[01]
09021-50060
SCREW, RACK GUIDE
028
[02]
09023-00031
PLATE SET, VALVE H
029
[01]
94918-00600
SCREW, HOLLOW
M10
030
[02]
09025-10010
WASHER, INJECTION
T1,D13.9
031
[01]
09025-00030
NIPPLE SUB-ASSY, O
032
[01]
09027-01180
COVER SUB-ASSY, IN
032-001
[01]
09027-10370
PLATE, INJECTION P
032-002
[01]
09027-20200
GASKET, INJECTION
032-003
[02]
09024-30030
PACKING, AIR BLEED
032-004
[02]
09027-60030
SCREW
032-005
[01]
09028-00040
CLEANER, INJECTION
032-006
[01]
09024-10010
WASHER, AIR BLEEDE
T1.6
033
[01]
09029-00321
GAUGE SUB-ASSY, IN
035
[03]
90160-06051
NUT, HEXAGON
M6,L5
040
[01]
94914-00380
O-RING
ID32.0
041
[01]
09020-60160
GASKET, BEARING CO
042
[01]
09018-90022
PLUG, INJECTION PU
043
[01]
09025-10010
WASHER, INJECTION
044
[01]
09083-80012
PLUG, DRAIN
045
[01]
09024-00010
BLEEDER SUB-ASSY,
045-001
[01]
09024-10010
WASHER, AIR BLEEDE
T1.6
045-002
[01]
09024-20010
NIPPLE, AIR BLEEDE
045-003
[01]
09024-30030
PACKING, AIR BLEED
045-004
[01]
09024-40010
SCREW, AIR BLEEDER
046
[01]
94918-00310
SCREW, HOLLOW
047
[02]
09022-20070
WASHER, FUEL PIPE
T1.2

Include in ##:

09010-04450 as BODY ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09010-04450

BODY ASSY, INJECTI
