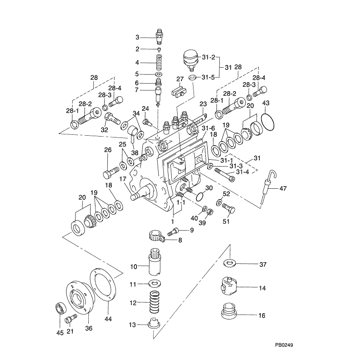

09010-02410 BODY ASSY, INJECTI Denso Cross


Rating:
3
Buy BODY ASSY, INJECTI 09010-02410 genuine, new aftermarket engine parts with delivery

Information body assy, injecti Denso

Scheme #.#:

Qty
Part num
Name
Remarks
Manufacture num
000
[01]
09010-02410
BODY ASSY, INJECTI
A4:DRIV.16.8
001
[01]
HOUSING SUB-ASSY,
001-001
[03]
BOLT, STUD
M6,L26
002
[04]
STOPPER, DELIVERY
003
[04]
HOLDER, DELIVERY V
004
[04]
SPRING, DELIVERY V
005
[04]
GASKET, DELIVERY V
D18,ID12
006
[04]
VALVE SUB-ASSY, IN
MK:161S1
007
[04]
ELEMENT SUB-ASSY,
MK:1855
008
[04]
PINION, PLUNGER CO
009
[04]
SCREW, PLUNGER CON
010
[04]
SLEEVE, PLUNGER CO
011
[04]
SEAT, SPRING, UPR
-9301
011
[04]
SEAT, SPRING, UPR
9301-
012
[04]
SPRING, PUMP PLUNG
L49.4
013
[04]
SEAT, SPRING, LWR
014
[04]
TAPPET SUB-ASSY,IN
016
[04]
PLUG, INJECTION PU
M26,D30
017
[01]
CAMSHAFT, INJECTIO
D16.8
018
[02]
RING, CAMSHAFT ADJ
019
[6C]
PLATE, CAMSHAFT SH
T0.1
019
[6C]
PLATE, CAMSHAFT SH
T0.12
019
[6C]
PLATE, CAMSHAFT SH
T0.14
019
[6C]
PLATE, CAMSHAFT SH
T0.16
019
[6C]
PLATE, CAMSHAFT SH
T0.18
019
[6C]
PLATE, CAMSHAFT SH
T0.5
019
[6C]
PLATE, CAMSHAFT SH
T0.3
019
[6C]
PLATE, CAMSHAFT SH
T1.0
019
[6C]
PLATE, CAMSHAFT SH
T1.5
019
[6C]
PLATE, CAMSHAFT SH
T2.0
020
[02]
BEARING, ROLLER
D40,T13
021
[04]
BOLT, W/WASHER
M6,L14
023
[01]
RACK, CONTROL
024
[01]
SCREW, RACK GUIDE
M6,L9.8
025
[02]
WASHER, FUEL PIPE
ID13.8
026
[01]
SCREW, HOLLOW
M14,L26
027
[02]
PLATE SET, VALVE H
IRON
028
[02]
BLEEDER SUB-ASSY,
028-001
[02]
WASHER, AIR BLEEDE
T1.6ID12
028-002
[02]
NIPPLE, AIR BLEEDE
028-003
[02]
PACKING, AIR BLEED
ID6.7
028-004
[02]
SCREW, AIR BLEEDER
030
[01]
O-RING
ID32.0
031
[01]
COVER SUB-ASSY, IN
031-001
[01]
PLATE, INJECTION P
031-002
[01]
CLEANER, INJECTION
031-003
[02]
PACKING, AIR BLEED
ID6.7
031-004
[02]
SCREW
M6,L54
031-005
[01]
WASHER, AIR BLEEDE
T1.6ID12
031-006
[01]
GASKET, INJECTION
032
[01]
SCREW, HOLLOW
M10,L10
034
[02]
WASHER, INJECTION
T1,D13.9
036
[01]
COVER, BEARING
037
[4C]
PLATE, TAPPET ADJU
T0.6
037
[4C]
PLATE, TAPPET ADJU
T0.7
037
[4C]
PLATE, TAPPET ADJU
T0.8
037
[4C]
PLATE, TAPPET ADJU
T0.9
037
[4C]
PLATE, TAPPET ADJU
T1.0
037
[4C]
PLATE, TAPPET ADJU
T1.1
037
[4C]
PLATE, TAPPET ADJU
T1.2
037
[4C]
PLATE, TAPPET ADJU
T1.3
037
[4C]
PLATE, TAPPET ADJU
T1.4
037
[4C]
PLATE, TAPPET ADJU
T0.1
037
[4C]
PLATE, TAPPET ADJU
T0.2
037
[4C]
PLATE, TAPPET ADJU
T0.3
037
[4C]
PLATE, TAPPET ADJU
T0.4
037
[4C]
PLATE, TAPPET ADJU
T0.5
037
[4C]
PLATE, TAPPET ADJU
T0.15
037
[4C]
PLATE, TAPPET ADJU
T0.13
038
[01]
PIPE ASSY, OVERFLO
039
[03]
NUT, HEXAGON
M6
040
[03]
WASHER, SPRING
T1.5
043
[01]
O-RING
ID45.5
044
[01]
GASKET, BEARING CO
-9304
044
[01]
GASKET, BEARING CO
9305-
045
[01]
SEAL, OIL
D28,T7.5
047
[01]
GAUGE SUB-ASSY, GO
051
[01]
SCREW, DRAIN
052
[01]
WASHER, DRAIN SCRE
T1.0

Include in ##:

09000-07850 as BODY ASSY, INJECTI
09010-02410 BODY ASSY, INJECTI

Cross reference number



Part num
Firm num
Firm
Name
09010-02410

BODY ASSY, INJECTI




Information:

1. Disconnect two Fuel lines (1).2. Remove four bolts (2) and remove fuel transfer pump and gasket. The following steps are for the installation of the fuel transfer pump.3. Position the gasket and fuel transfer pump then install bolts (2).4. Connect fuel lines (1).5. Prime the fuel system. See the MAINTENANCE MANUAL.Disassemble Fuel Transfer Pump
Start By:a. remove fuel transfer pump 1. Remove cover (1) from the fuel transfer pump. 2. Remove strainer (2). 3. Remove valve housing (3) from body (4). 4. Use a pencil grinder to remove the staked metal that holds inlet check valve (6) and outlet check valve (5) in place. Remove check valves (5) and (6). 5. Push the center of the diaphragm down and turn it 90° to disengage the actuator rod from the actuator arm. Remove diaphragm (7). 6. Remove spring (8). 7. Remove retainer (9). 8. Remove lever (12), shaft (11) and arm (10) as an assembly. 9. If necessary, remove washers (13) from shaft (11). Remove shaft (11) and separate arm (10) from lever (12). 10. If necessary, remove primer (14) and spring.11. Thoroughly inspect all parts of the fuel transfer pump. A repair kit is available to rebuild the fuel transfer pump. The following steps are for the assembly of the fuel transfer pump. 12. Install primer (14) and the spring on to body (4). 13. Install lever (12) into arm (10) and install pin (11) through the arm and lever. Put washer (13) on each side of arm (10). 14. Put spring (15) into position on the boss in body (4). Install arm (10) and lever (12) as an assembly into body (4). Be sure spring (15) engages with the tang on lever (12). 15. Install two retainers (9) to hold shaft (11) and arm and lever assembly in body (4). 16. Install spring (8) into body (4). 17. Install diaphragm (7) into body (4). Put the flat on the actuator rod in alignment with lever (12). Push the center of the diaphragm down and turn it 90° to engage the actuator rod with the actuator arm. 18. Install a gasket and check valve (6) and gasket and check valve (5) in valve body (3). Stake valve body (3) around each check valve to hold them in position. Make the stake marks at a different location than the original stake marks. 19. Put the valve body in place on diaphragm (7) and install the screws that hold it. 20. Put strainer (2) in position on valve body (3). 21. Install a new gasket in cover (1) and Install cover (1) on body.End By:a. install fuel transfer pump
