09010-01391 BODY ASSY, INJECTI Denso Cross Denso

Buy now

Add to cart Go to cart

Rating:

Buy BODY ASSY, INJECTI 09010-01391 genuine, new aftermarket engine parts with delivery

Information body assy, injecti Denso

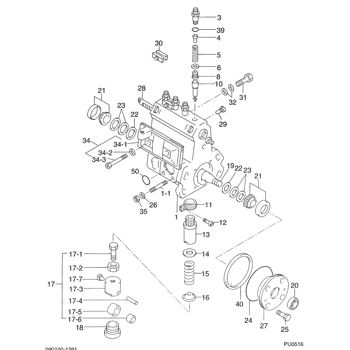

Scheme #.#:

№

Qty

Part num

Name

Remarks

Manufacture num

000

[01]

09010-01391

BODY ASSY, INJECTI

A4:DRIV.16.8

001

[01]

09010-91261

HOUSING SUB-ASSY,

001-001

[03]

94904-30010

BOLT, STUD

M6,L26

003

[04]

09013-10250

HOLDER, DELIVERY V

004

[04]

09013-30010

STOPPER, DELIVERY

005

[04]

09013-60120

SPRING, DELIVERY V

006

[04]

09013-70100

GASKET, DELIVERY V

D13

008

[04]

09014-00220

VALVE SUB-ASSY, IN

MK161P14

010

[04]

09015-00360

ELEMENT SUB-ASSY,

MK:184-7

011

[04]

09015-60010

PINION, PLUNGER CO

012

[04]

09015-70010

SCREW, PLUNGER CON

013

[04]

09016-10050

SLEEVE, PLUNGER CO

014

[04]

09016-30191

SEAT, SPRING, UPR

015

[04]

09016-40150

SPRING, PUMP PLUNG

L44.0

016

[04]

09016-50010

SEAT, SPRING, LWR

017

[04]

09017-00020

TAPPET SUB-ASSY,IN

-8309

017

[04]

09017-00130

TAPPET SUB-ASSY,IN

8309-

017-001

[04]

09017-30010

BOLT, INJECTION PU

017-002

[04]

09017-40010

NUT, INJECTION PUM

017-003

[04]

09016-90110

BODY, INJECTION PU

-8309

017-003

[04]

09016-90130

BODY, INJECTION PU

8309--9303

017-003

[04]

09017-10173

TAPPET, INJECTION

9303-

017-004

[04]

09017-60010

PIN, INJECTION PUM

017-005

[04]

09018-10010

ROLLER, INJECTION

-8309

017-005

[04]

09018-10030

ROLLER, INJECTION

8309-

017-006

[04]

09017-80010

BUSHING, INJECTION

-8309

017-006

[04]

09017-80030

BUSHING, INJECTION

8309-

017-007

[04]

09017-50040

SLIDER

9303-

018

[04]

09018-90060

PLUG, INJECTION PU

M26,D28

019

[01]

09019-10261

CAMSHAFT, INJECTIO

020

[01]

94915-01750

SEAL, OIL

D28,T6

021

[01]

94910-10120

BEARING, ROLLER

D40,T13

022

[02]

09019-30020

RING, CAMSHAFT ADJ

023

[1C]

09019-40010

PLATE, CAMSHAFT SH

T0.1

023

[1C]

09019-40020

PLATE, CAMSHAFT SH

T0.12

023

[1C]

09019-40030

PLATE, CAMSHAFT SH

T0.14

023

[1C]

09019-40040

PLATE, CAMSHAFT SH

T0.16

023

[1C]

09019-40050

PLATE, CAMSHAFT SH

T0.18

023

[1C]

09019-40060

PLATE, CAMSHAFT SH

T0.5

023

[1C]

09019-40140

PLATE, CAMSHAFT SH

T1.0

023

[1C]

09019-40150

PLATE, CAMSHAFT SH

T1.5

024

[01]

94914-00060

O-RING

ID45.5

025

[04]

94904-10130

BOLT, SLOTTED HEXA

M6,L14

026

[03]

90258-06001

WASHER, SPRING

T1.5

027

[01]

09020-10240

COVER, BEARING

028

[01]

09021-20110

RACK, CONTROL

029

[01]

09021-50060

SCREW, RACK GUIDE

M6,L9.8

030

[02]

09023-00050

PLATE SET, VALVE H

ALUMINUM

031

[01]

94918-00061

SCREW, HOLLOW

M10,L19

032

[02]

09025-10010

WASHER, INJECTION

T1,D13.9

034

[01]

09027-00213

COVER SUB-ASSY, IN

034-001

[01]

09027-50182

PROCESSING DRAWING

034-002

[02]

09024-30030

PACKING, AIR BLEED

ID6.7

034-003

[02]

09027-60030

SCREW

M6,L54

034-004

[01]

09027-20210

GASKET, INJECTION

035

[03]

90160-06051

NUT, HEXAGON

M6,L5

039

[04]

90801-10180

O-RING

ID17.8

040

[01]

09020-60160

GASKET, BEARING CO

050

[01]

94914-00380

O-RING

ID32.0

Include in ##:

09000-03430 as BODY ASSY, INJECTI

09010-01391 BODY ASSY, INJECTI

Cross reference number

Part num

Firm num

Firm

Name

09010-01391

BODY ASSY, INJECTI

09010-01391 BODY ASSY, INJECTI Denso Cross

Information body assy, injecti Denso

Scheme #.#:

Include in ##:

Cross reference number

Have questions with 09010-01391?

Group cross 09010-01391
